Load Capacity
1100kg
Cargo Types
Truck tires & bus tires
Stack Max
4-5
Color
Customizable
Usage Instructions

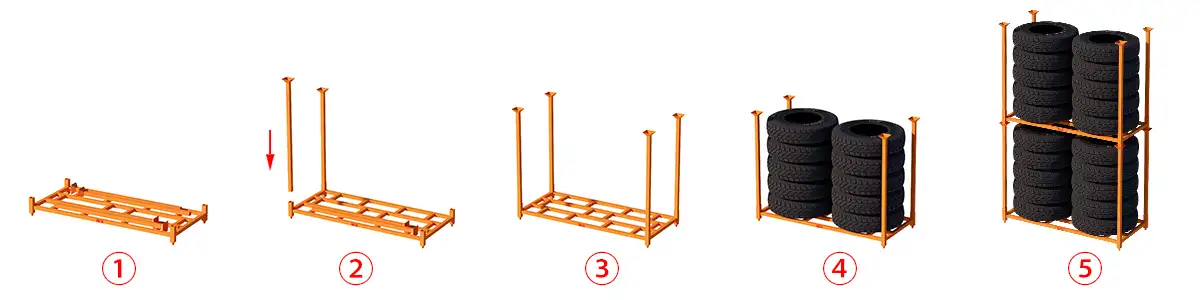

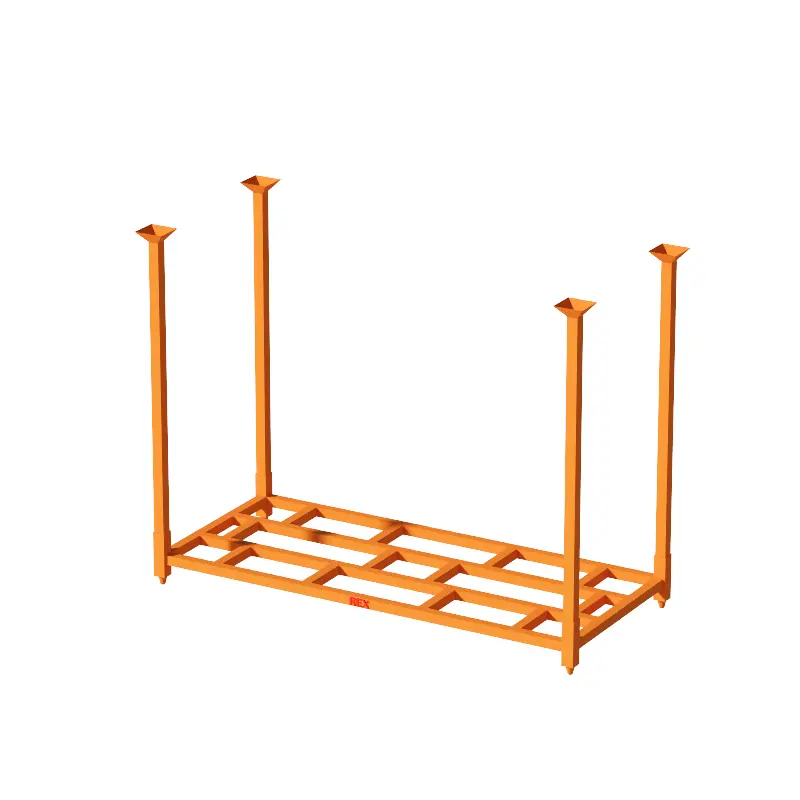

**Installing the Support Fitting**

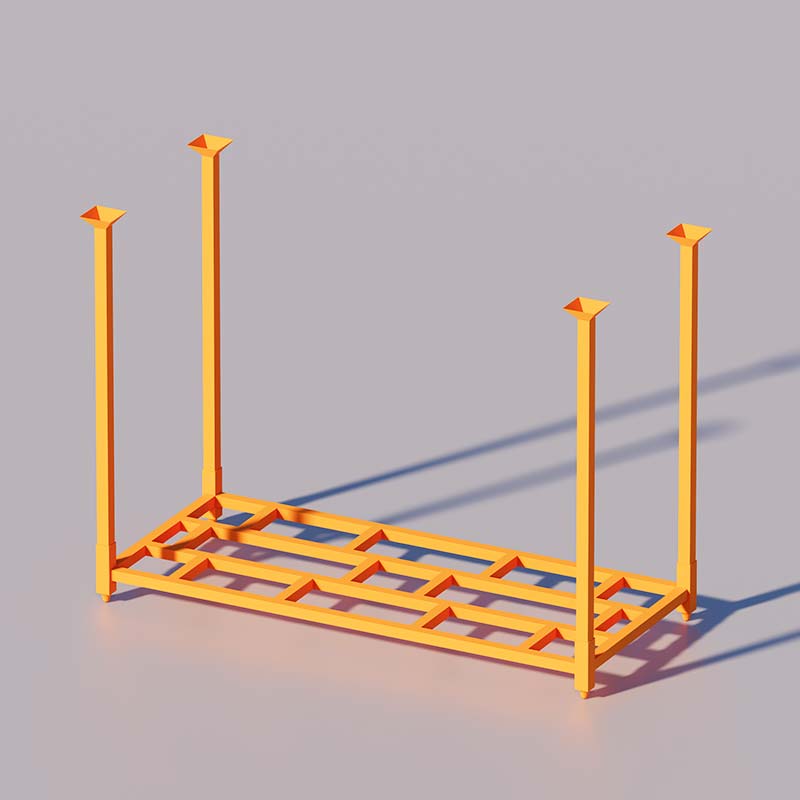

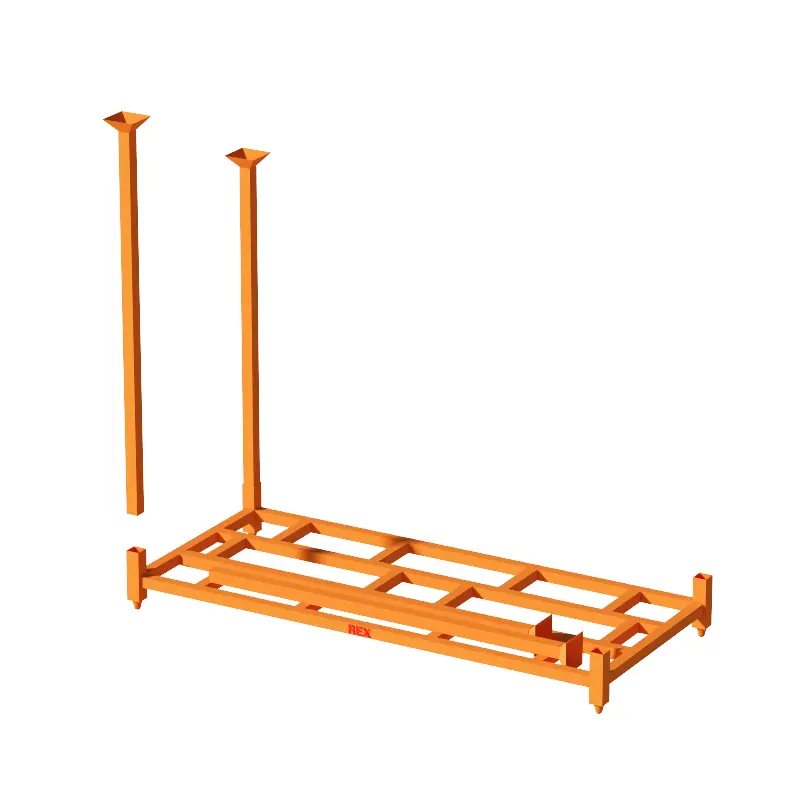

Align one end of the square/round tube with the frame sleeve and insert it horizontally to the bottom (ensuring full insertion).
**Placing the Tire**

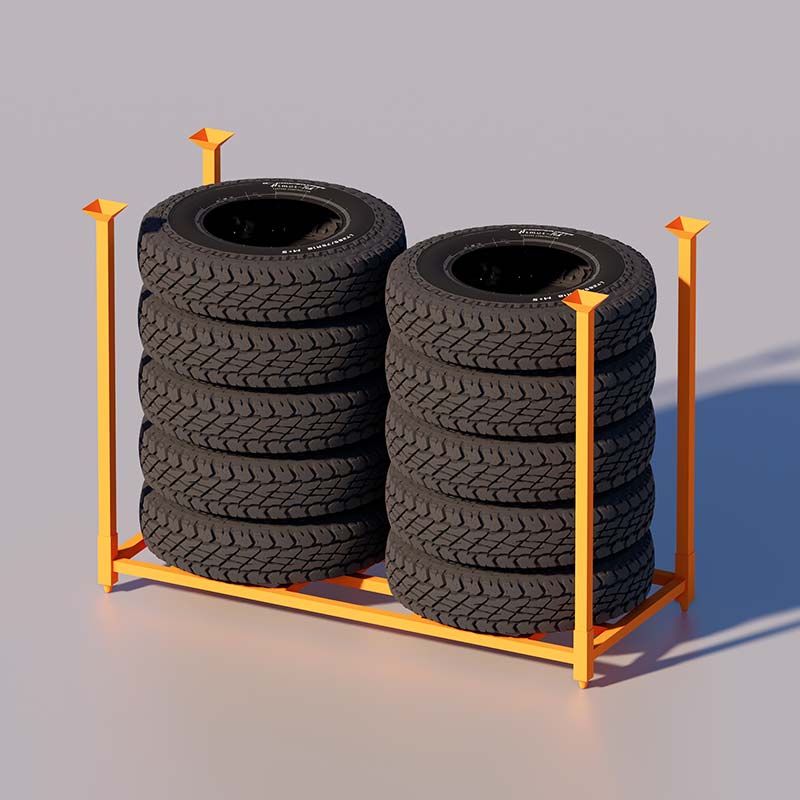

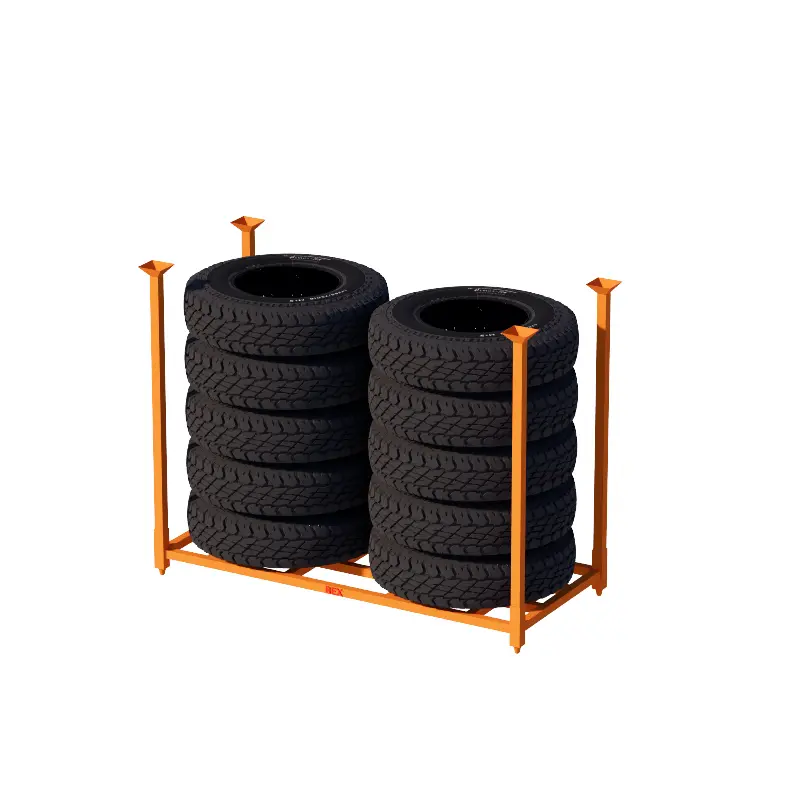

Place the tire horizontally on the tire rack.

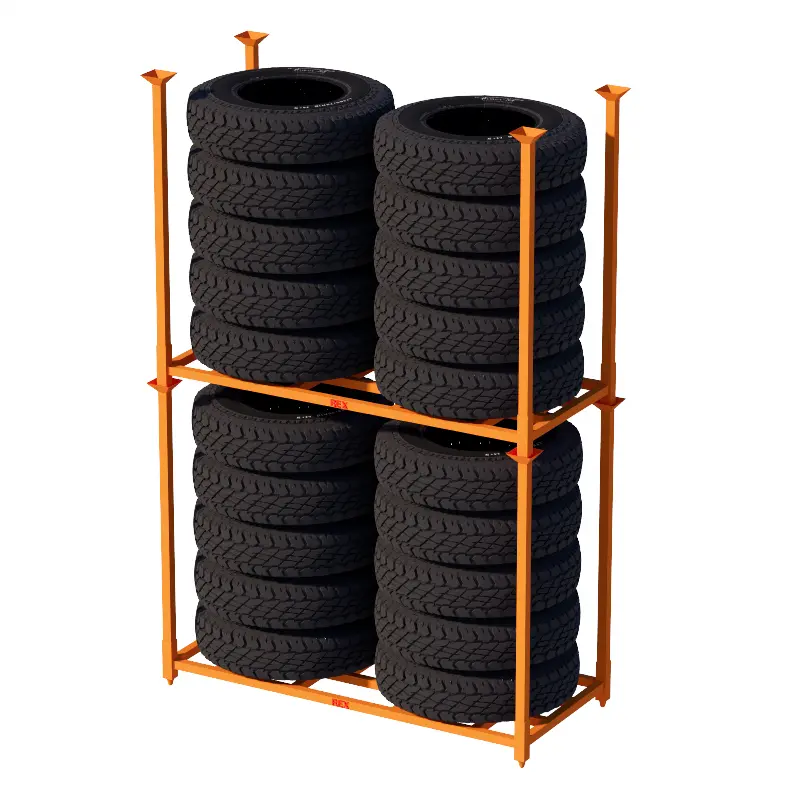

**Forklift Stacking**

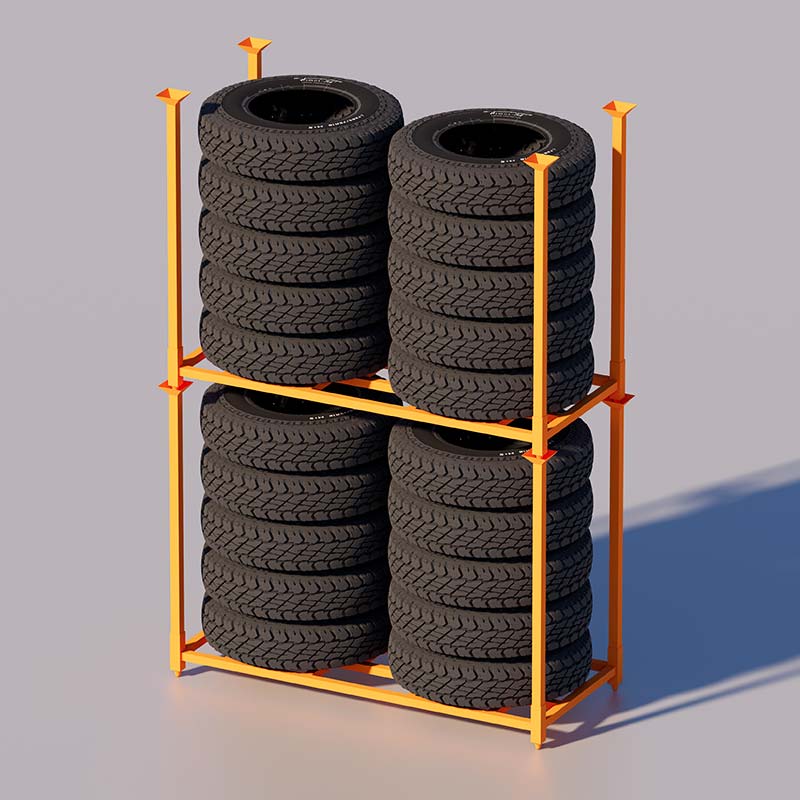

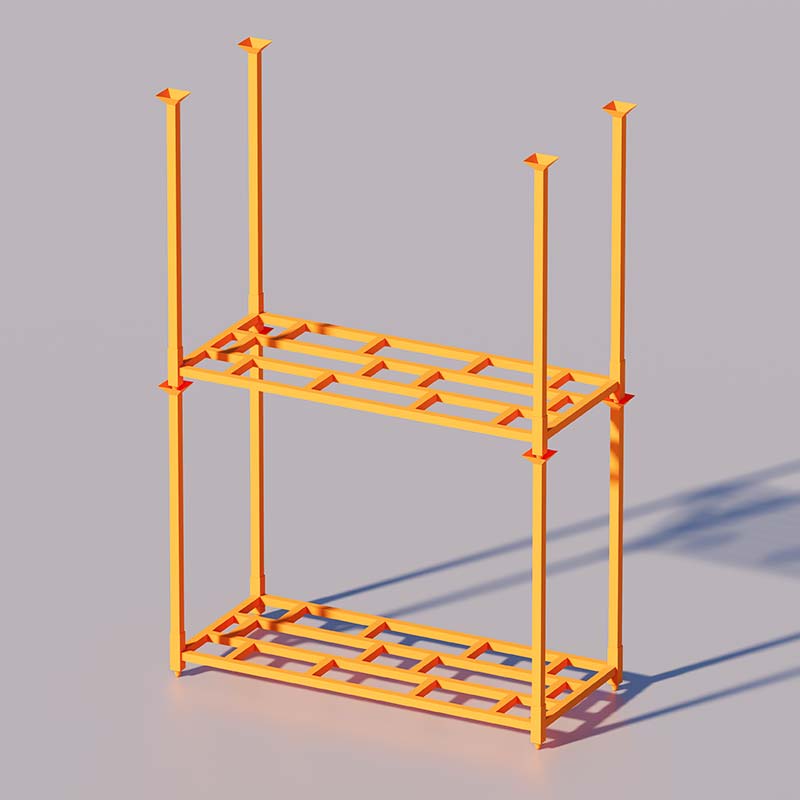

Adjust the forklift forks to match the height of the frame bottom, slowly insert them into the bottom of the tyre stillages until fully in place, and lift the frame at a steady speed to stack the tires. When lowering, gently place the tires onto the lower frame, ensuring the frame corners are aligned.

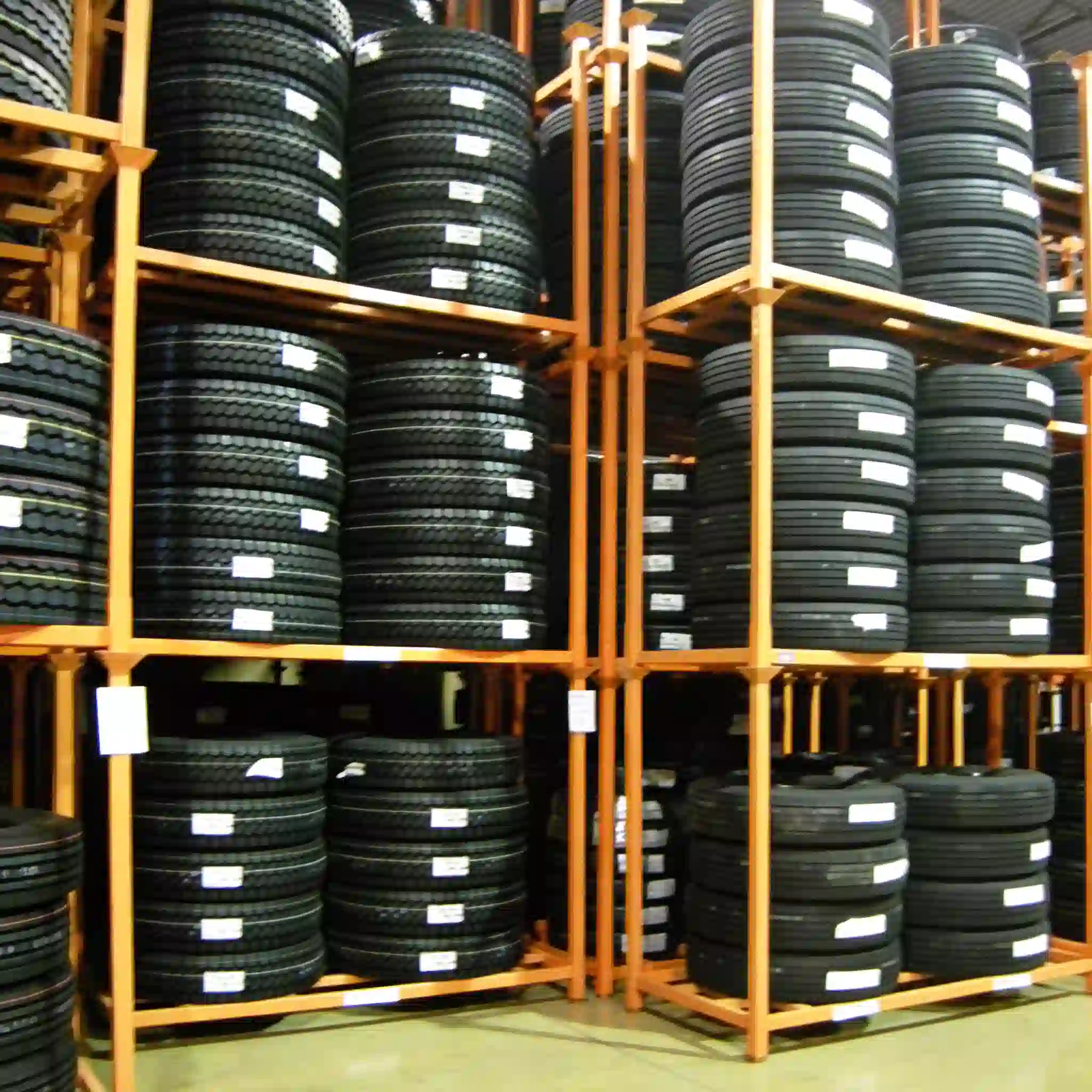

Using stacking racks can make full use of the upper space, improve the utilization rate of the upper space in the warehouse, and achieve high-density storage.
Overview

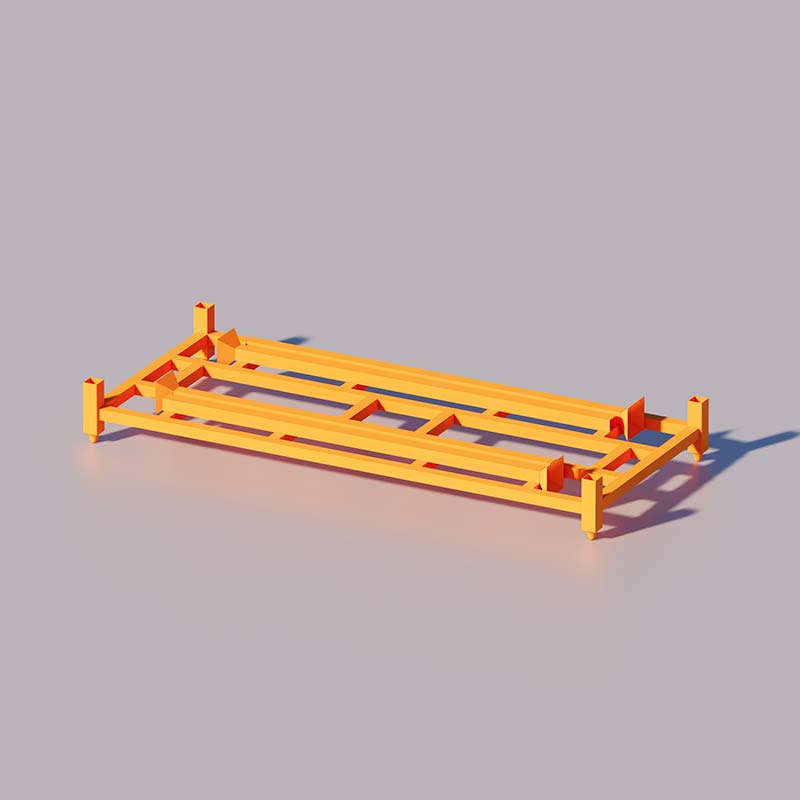

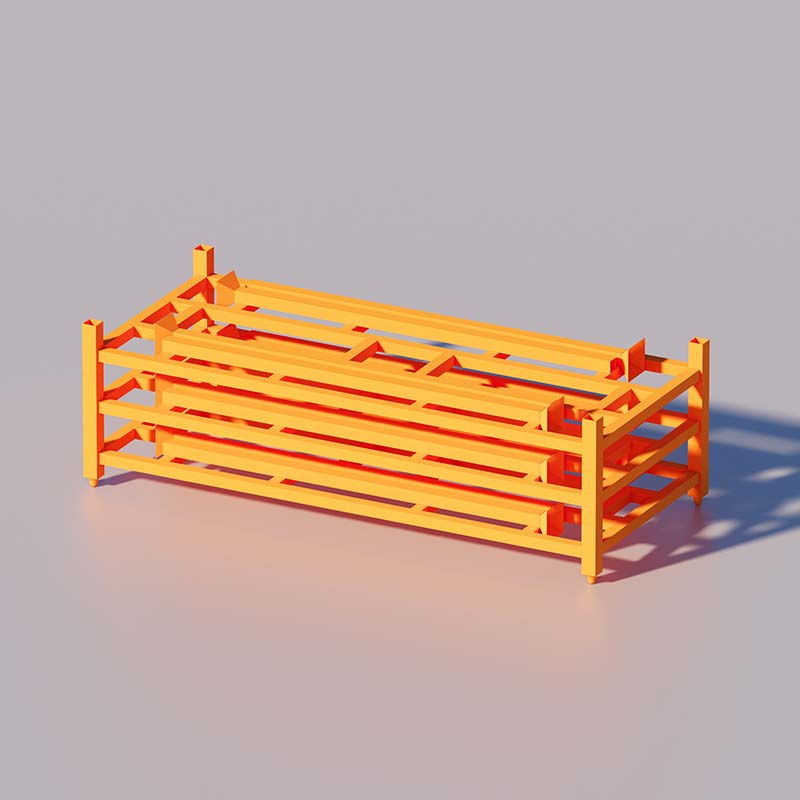

This tire stacking rack for trucks and buses is a professional storage device designed specifically for heavy-duty vehicle tires. Its innovative multi-layer vertical stacking structure improves space utilization by over 300% compared to traditional flat storage methods. Constructed from high-strength steel, each rack can support up to 1100 kg (approximately 2400 lbs) and can store 7-14 standard truck/bus tires simultaneously. When fully loaded, it can be stacked 4-5 layers high; when empty, the square tubes can be removed, allowing for up to 20 layers, making it an ideal tire storage solution.
Specifications
Frame Material: Cold-rolled steel (Q235B), thickness 1.5-3.0mm, square or round tube structure
Surface Treatment: Powder coating (custom colors available), rust-proof, moisture-proof, environmentally friendly, and long-lasting gloss
Welding Process: Precision robotic welding, uniform and strong welds, stable structure
Intubation system: Patented insert-type design, extremely stable after connection, providing excellent stability
Applications
1. Tire Manufacturing and Wholesale Industry
Production Plants: Temporary storage and turnover of finished tires, facilitating quality inspection and batch management.
Tire Wholesalers: Large-volume tire storage, categorized by specification and brand, improving picking efficiency.
Advantages: Standardized storage facilitates inventory counting, reduces tire compression deformation, and extends tire life.
2. Logistics and Transportation Companies
Fleet Management Centers: Centralized storage of truck/bus tires for easy maintenance and replacement.
Bus Companies: Dedicated storage for bus tires, solving the problem of large tires occupying space.
Advantages: Can be quickly accessed and removed using forklifts, improving maintenance efficiency and reducing labor costs.
3. Auto Repair and Maintenance Industry
Large Truck Repair Shops: Simultaneous storage of tires for multiple vehicle types, readily available for use.
Tire Specialty Stores: Integrated display and inventory, improving space utilization.
Advantages: Prevents tire deformation upon contact with the ground, maintains tire roundness, and extends service life.
4. Other Application Areas
Construction Machinery Industry: Storage of large equipment tires.
Ports/Docks: Management of container truck tires.
Mining/Forestry: Centralized storage of special vehicle tires.
