Stackable Stillages that can be used in cold storage
Model
Rex Metal - Stacking Rack
Size
1600×1110×1500 mm
Cargo Types
Bagged goods, boxed goods, groceries and other items stacked in the warehouse
Customized
Customization supported
Specifications & Usage Instructions
| Type | Detachable | Materials | Round steel pipe (Q235) |
| Applicable pallets | 1200×1000 mm | Load capacity | 1000kg |
| Finish | Powder coated paint | Stackable – max. quantity (open) | 5 |
| Color | Blue | Stackable – max. quantity (closed) | 20 |

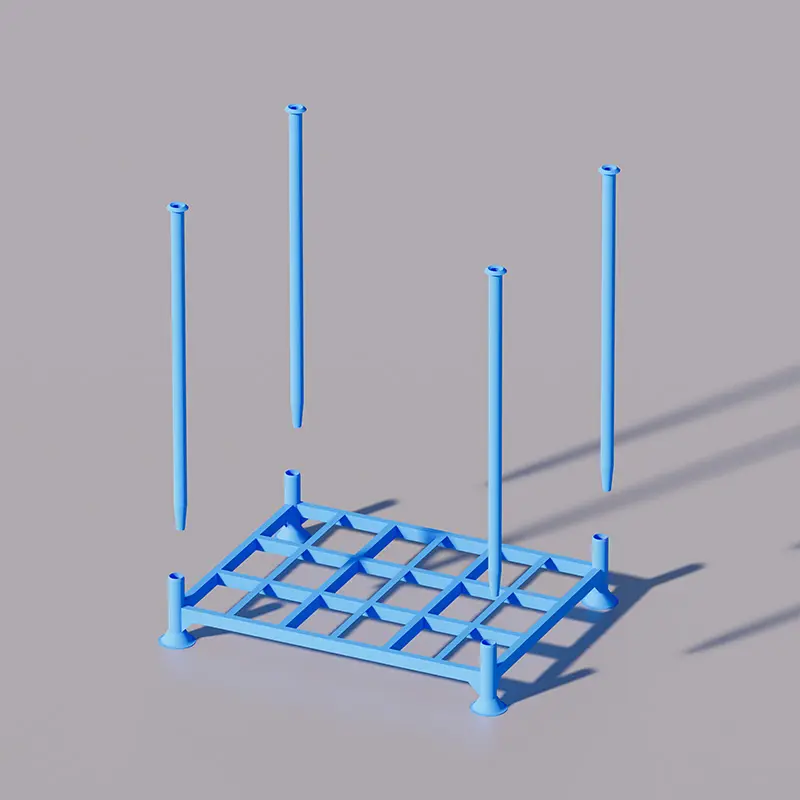

Installing Support Fittings:
Align one end of the square/round tube with the frame sleeve and insert it horizontally to the bottom (ensure full insertion).
Placing Goods:

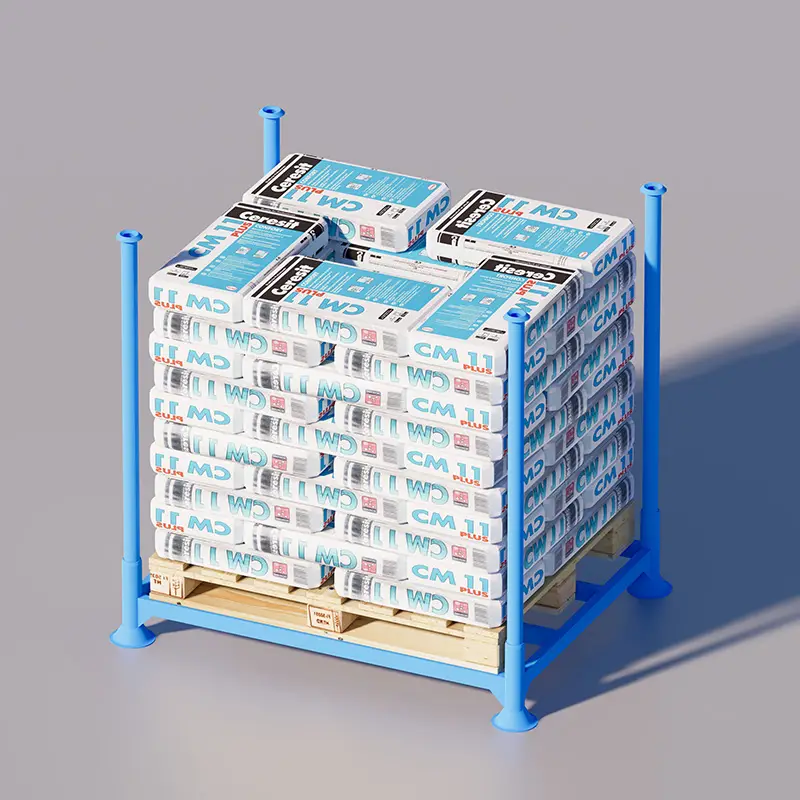

Stack goods on the stacking rack.

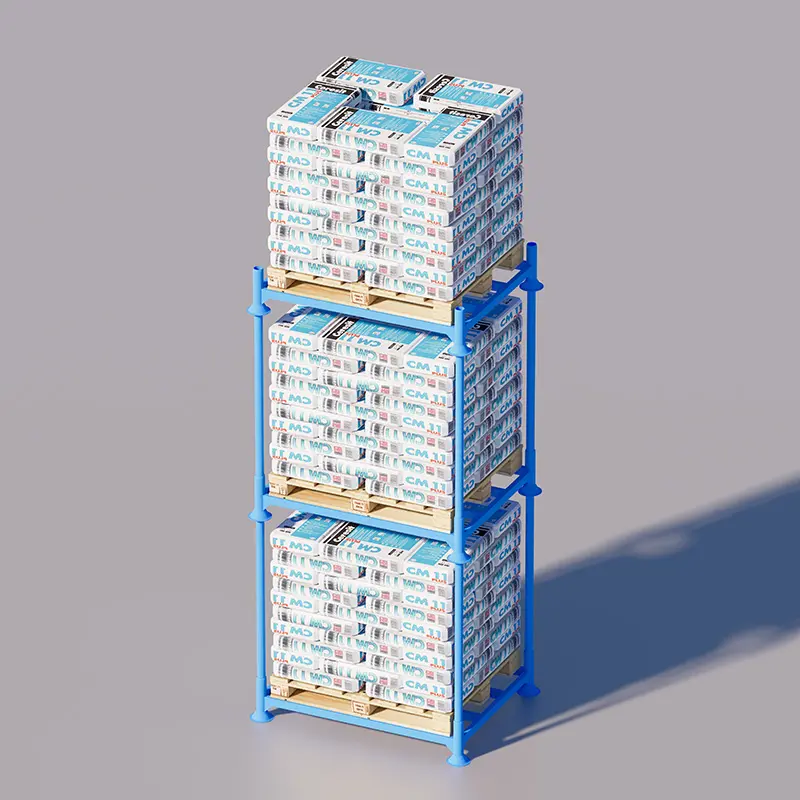

Forklift Stacking:
Adjust the forklift forks to match the bottom of the frame. Slowly insert the forklift forks into the bottom of the stacking rack until fully in place. Lift the rack at a steady speed to stack the goods. When lowering, gently place the goods onto the lower rack, ensuring the edges are aligned.

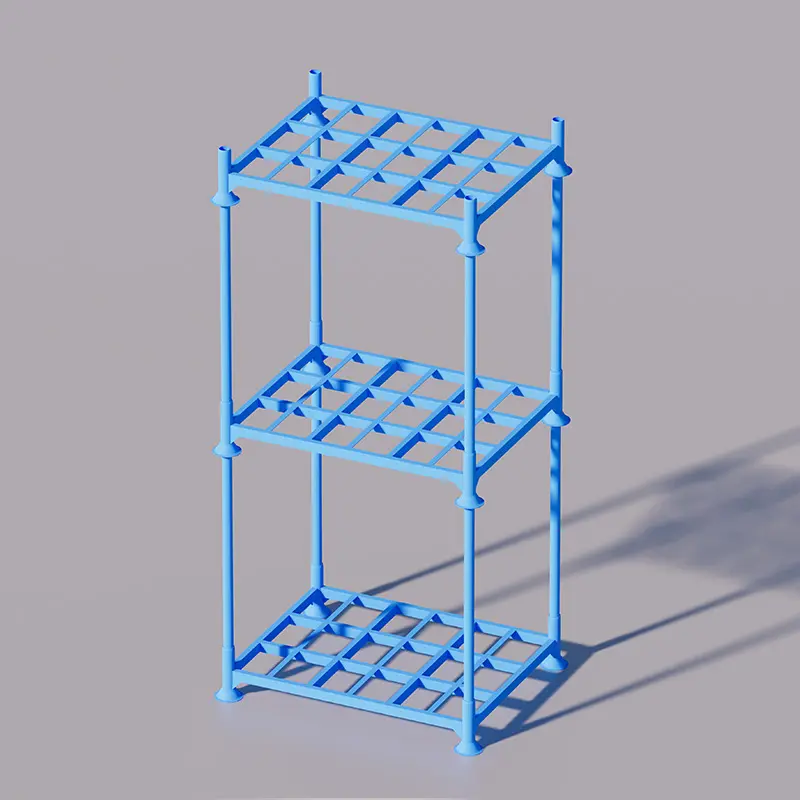

Using stacking racks can make full use of the upper space, improve the utilization rate of the upper space in the warehouse, and achieve high-density storage.
Overview
Stackable Stillages are high-efficiency storage devices designed specifically for cold storage environments. They feature a sleeve-type constriction design that can stably support 1000-1500kg of goods, increasing cold storage space utilization by 40%-60% while solving the pain points of traditional cold storage racks, such as fixed land occupation, inconvenient turnover, and high maintenance costs.
Advantages
The plug-in type stacking rack is an ideal carrier for unitized transportation. It transforms loose goods into standard modules, significantly improving forklift loading and unloading efficiency. The unique detachable design solves the industry problem of "full containers going out and empty containers returning", greatly releasing the truck's transport capacity.
Applications
1. Food Cold Chain Storage
Meat Processing: Stores frozen meat and cut products; hot-dip galvanized for protection against blood corrosion and extended service life.
Seafood: Stores chilled/frozen seafood; moisture-proof and rust-proof for food safety.
Dairy Products: Stores cheese, butter, etc.; plastic design eliminates odors and does not contaminate the product.
2. Pharmaceutical Cold Chain
Vaccine Storage: Stackable design increases storage density, facilitates temperature monitoring and retrieval, and meets GSP standards.
