Load Capacity
1100kg
Cargo Types
Passenger car & SUV
Stack Max
5
Color
Orange/Blue/Green

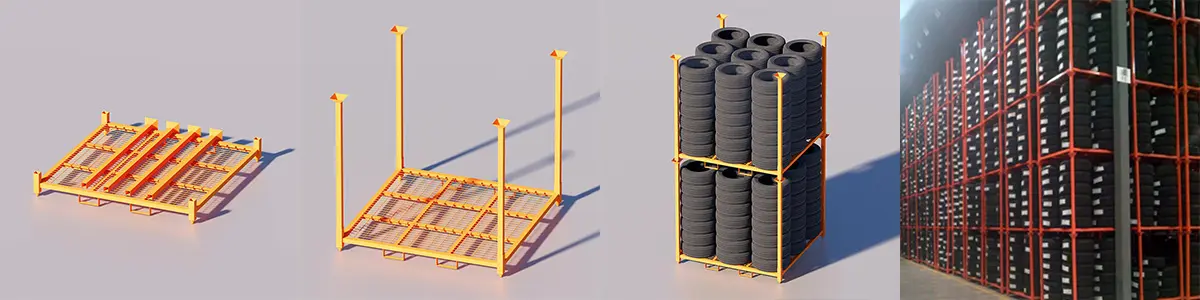

Usage Instructions
**Installing the Support Fitting**

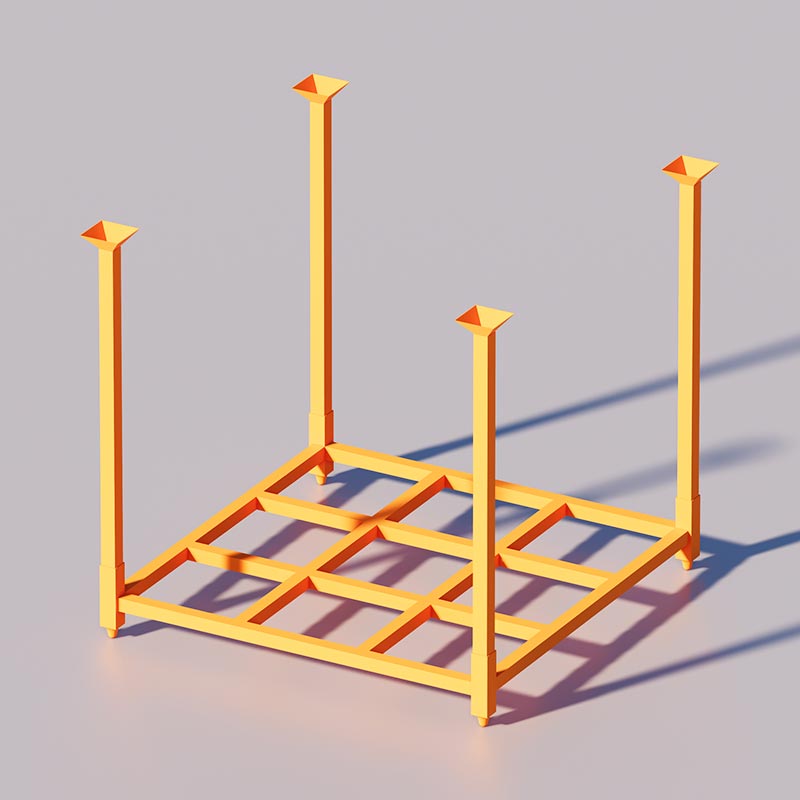

Align one end of the square/round tube with the frame sleeve and insert it horizontally to the bottom (ensuring full insertion).
**Placing the Tire**

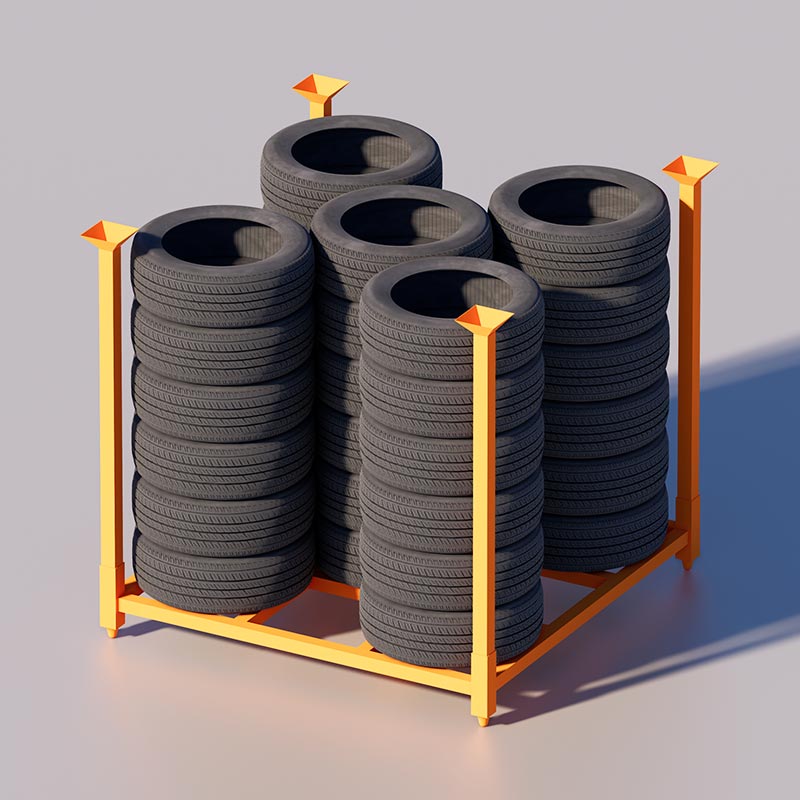

Place the tire horizontally on the tire rack.
**Forklift Stacking**

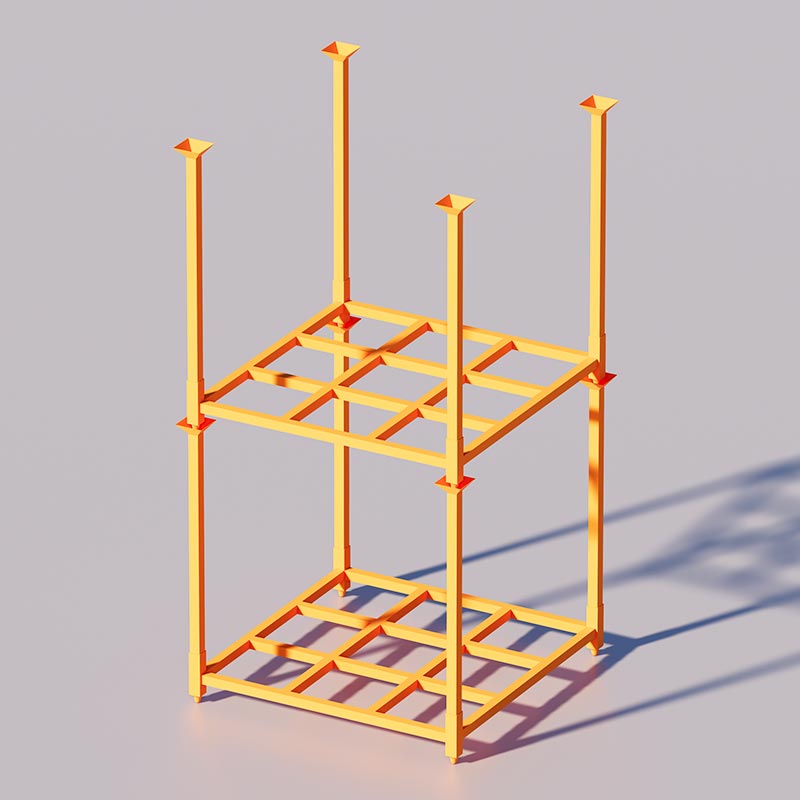

Adjust the forklift forks to match the height of the frame bottom, slowly insert them into the bottom of the tyre stillages until fully in place, and lift the frame at a steady speed to stack the tires. When lowering, gently place the tires onto the lower frame, ensuring the frame corners are aligned.
Using stacking racks can make full use of the upper space, improve the utilization rate of the upper space in the warehouse, and achieve high-density storage.
Overview

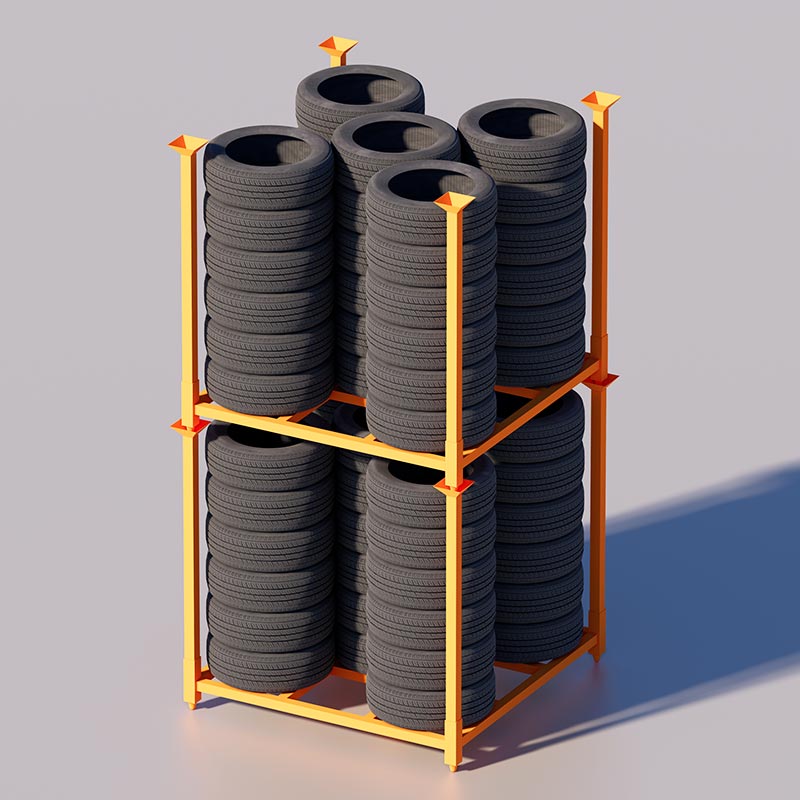

This Tire Storage Rack is a highly efficient storage system designed specifically to solve tire storage challenges. Through innovative vertical stacking and flexible layout, it increases the space utilization of traditional flat storage by 200-300%. These products are made of high-strength steel and can store 20-30 tires at the same time (depending on size).
Specifications
Frame Material: Cold-rolled steel (Q235B), thickness 1.5-3.0mm, square or round tube structure
Surface Treatment: Powder coating (custom colors available), rust-proof, moisture-proof, environmentally friendly, and long-lasting gloss
Welding Process: Precision robotic welding, uniform and strong welds, stable structure

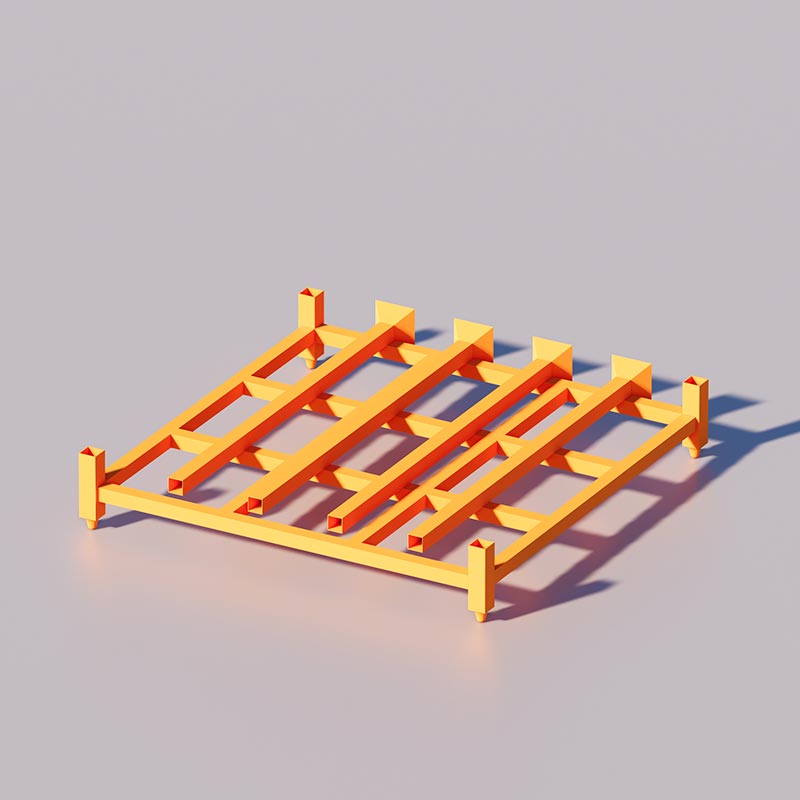

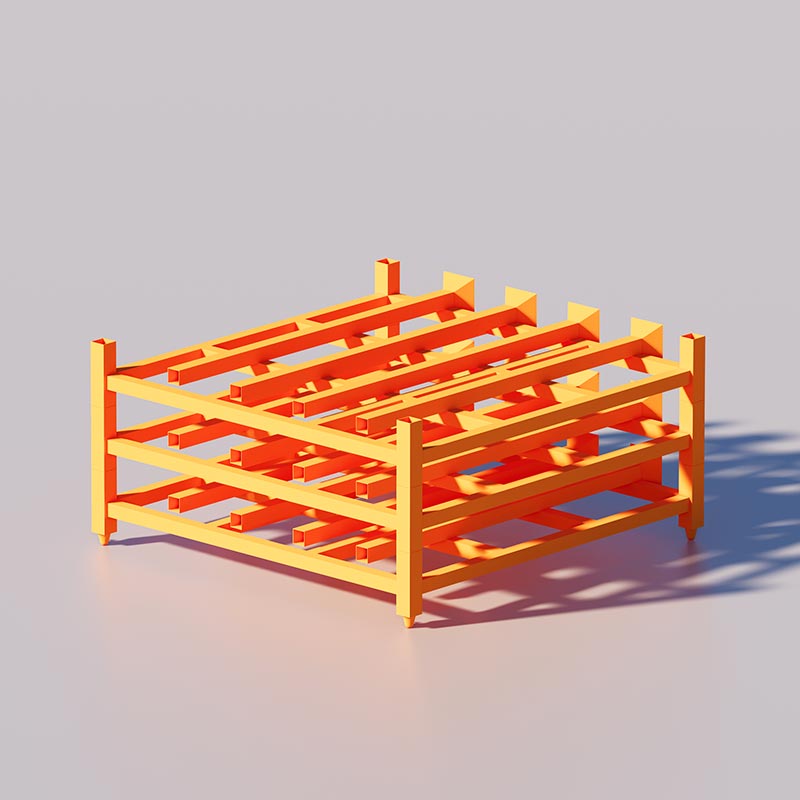

Folding System: Patented insert-type design, extremely stable after connection, providing excellent stability
Applications
1. Tire Manufacturing and Wholesale Industry
Production Plants: Temporary storage and turnover of finished tires, facilitating quality inspection and batch management.
Tire Wholesalers: Large-volume tire storage, categorized by specification and brand, improving picking efficiency.
Advantages: Standardized storage facilitates inventory counting, reduces tire compression deformation, and extends tire life.
2. Logistics and Transportation Companies
Fleet Management Centers: Centralized storage of truck/bus tires for easy maintenance and replacement.
Bus Companies: Dedicated storage for bus tires, solving the problem of large tires occupying space.
Advantages: Can be quickly accessed and removed using forklifts, improving maintenance efficiency and reducing labor costs.
3. Auto Repair and Maintenance Industry
Large Truck Repair Shops: Simultaneous storage of tires for multiple vehicle types, readily available for use.
Tire Specialty Stores: Integrated display and inventory, improving space utilization.
Advantages: Prevents tire deformation upon contact with the ground, maintains tire roundness, and extends service life.
4. Other Application Areas
Construction Machinery Industry: Storage of large equipment tires.
Ports/Docks: Management of container truck tires.
Mining/Forestry: Centralized storage of special vehicle tires.
