Load Capacity
1100kg
Cargo Types
Motorcycle tires, e-bike tires
Stack Max
4-5
Color
Customizable
Usage Instructions

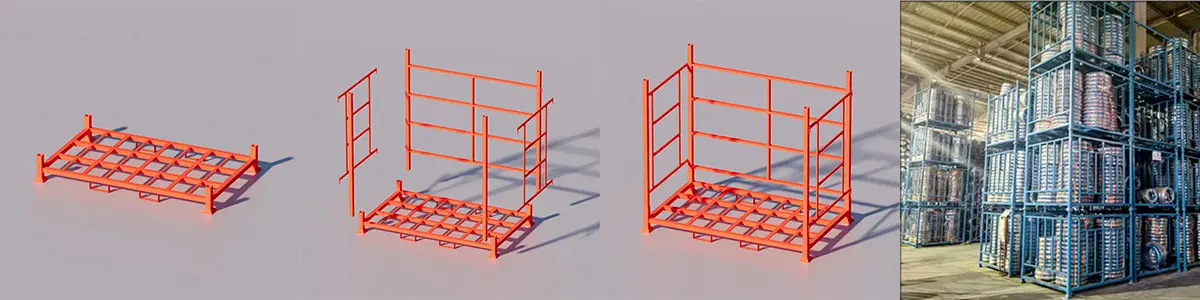

Installing Support Accessories:

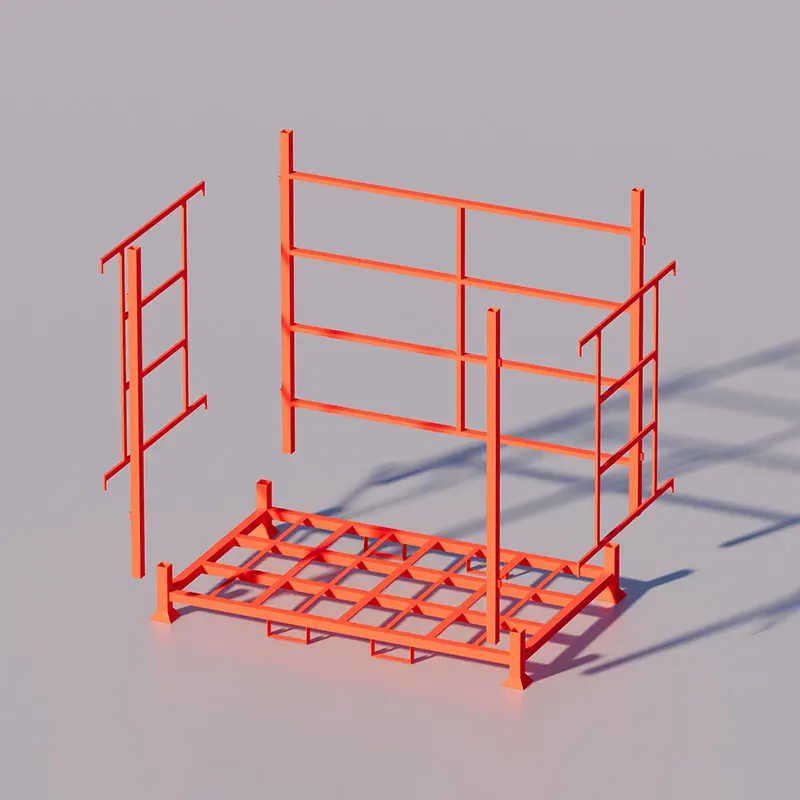

First, insert the rear guardrail, then vertically insert the two square tubes into the bottom sleeve, Next, insert the side guardrails. Assembly is now complete.
Placing Tires:

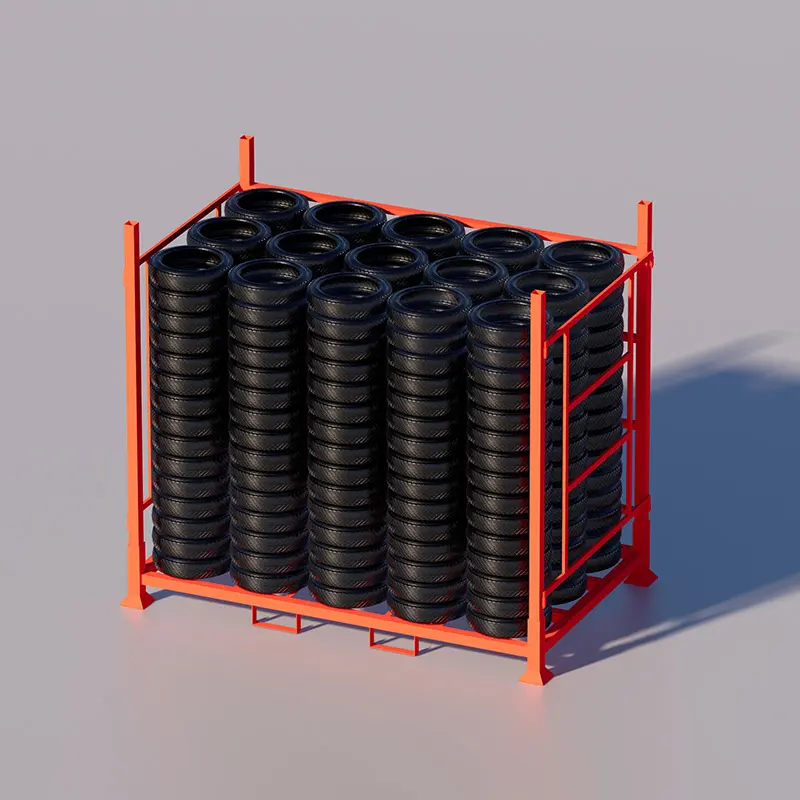

Place the tires horizontally on the tire carrier.

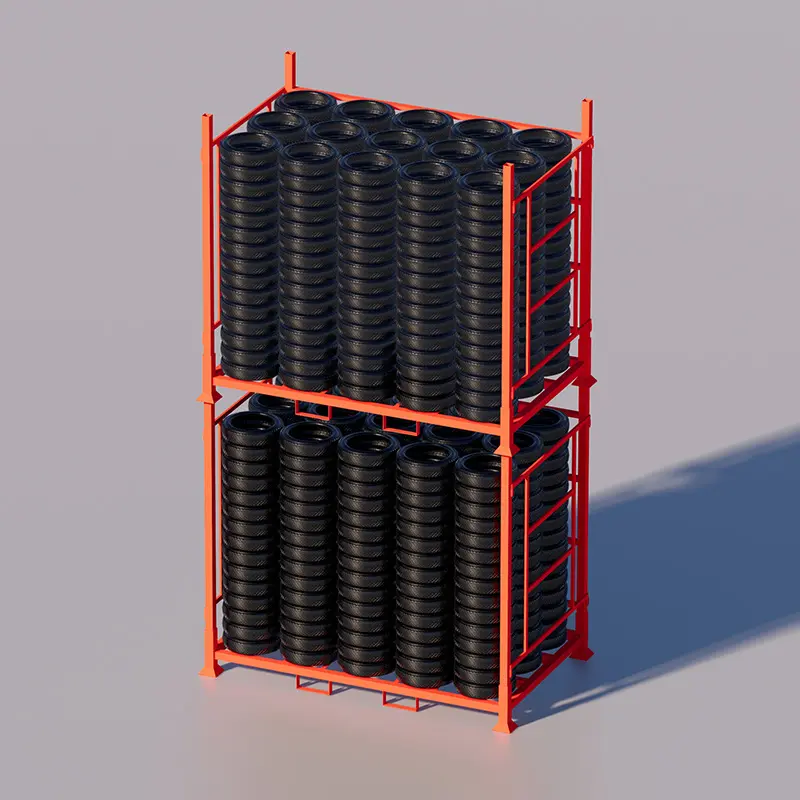

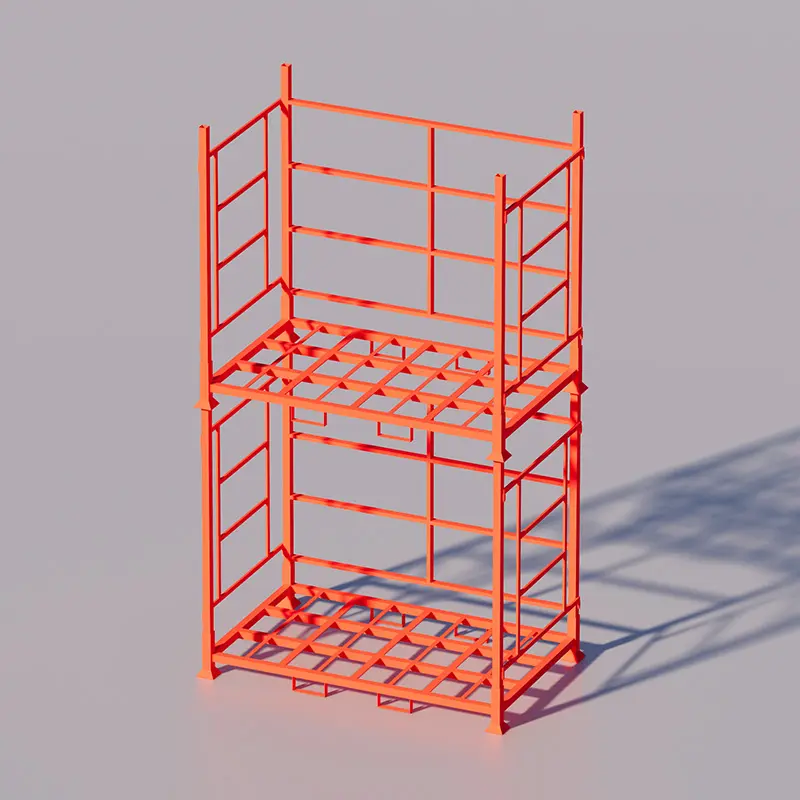

Forklift Stacking:
Adjust the forklift boom height to match the bottom height of the frame. Slowly insert the boom into the bottom of the tire carrier until fully in place. Then, lift the frame at a steady speed to stack the tires. When lowering, gently place the tires on the lower frame, ensuring the corners of the frame are aligned.
Using stacking racks can make full use of the upper space, improve the utilization rate of the upper space in the warehouse, and achieve high-density storage.
Overview
This motorcycle tire rack is a heavy-duty storage rack designed for workshops, dealerships, and warehouses for organizing and protecting motorcycle tires. Constructed from Q235B steel with a powder-coated finish, it provides stable support while maximizing storage and turnover efficiency. It is ideal for both short-term and long-term tire storage.
Specifications
· Material: Q235 steel
· Surface treatment: Powder coating
· Dimensions: Customizable or standard size 2250 x 1300 x 1800 mm
· Load capacity: 1100 kg per unit
· Tire type: Motorcycle tires, e-bike tires
· Optional accessories: Wheels, stackable frame, foldable design
Applications
· Motorcycle repair shops
· Tire retail stores
· Dealerships and showrooms
· Warehouses
· Racing teams' tire storage
