1524 x 1524 mm Stacking tyre rack with wire mesh decking
Model
Rex Metal - Tire Rack
Size
1524×1524×1524 mm
Cargo Types
Passenger car & SUV tire
Customized
Customization supported
Specifications & Usage Instructions
| Type | Detachable | Materials | Q235 Steel |
| Features | Mobile、 Stackable | Load capacity | 1100kg |
| Finish | Powder coated paint | Stackable – max. quantity (open) | 5 |
| Color | Orange | Stackable – max. quantity (closed) | 20 |

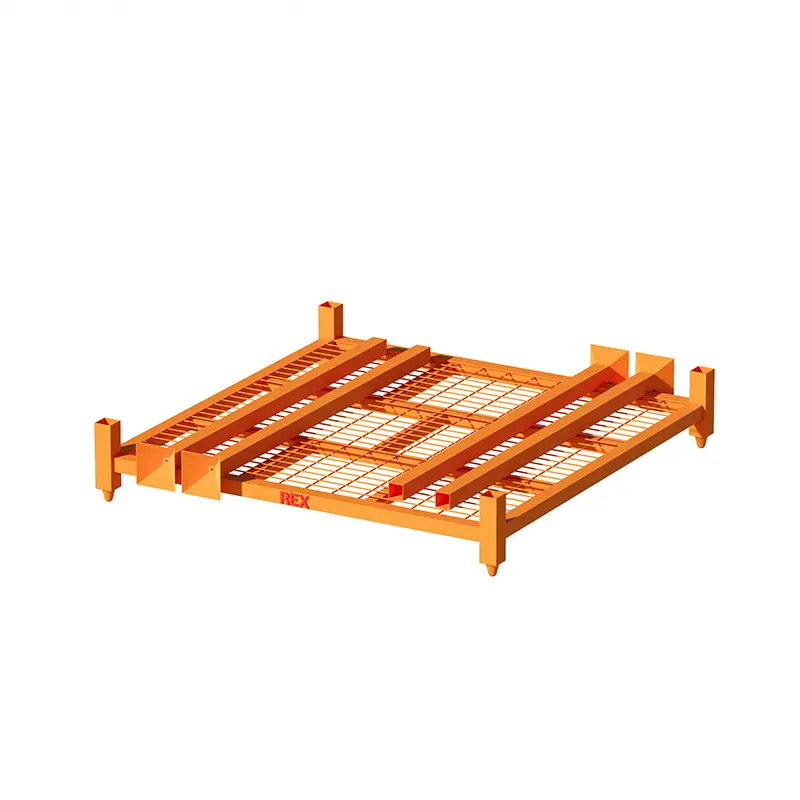

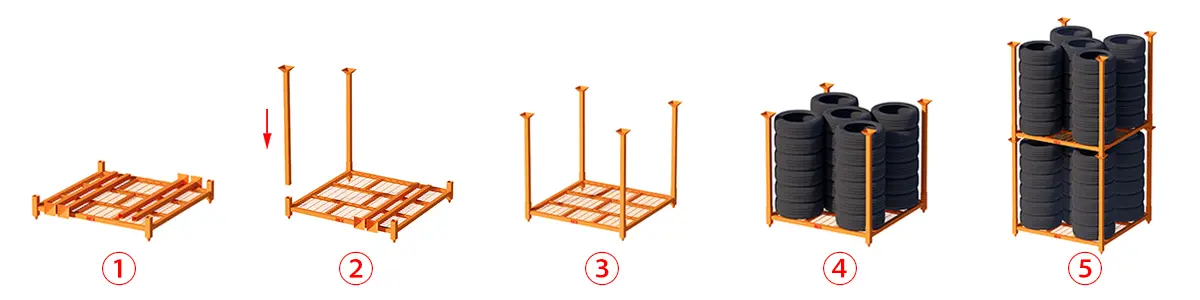

① Components: Gather all tire rack components, including 1 base frame and 4 upright posts.
② Assembly: Insert each upright post vertically into the sleeves at the four corners of the base frame (ensure full insertion).

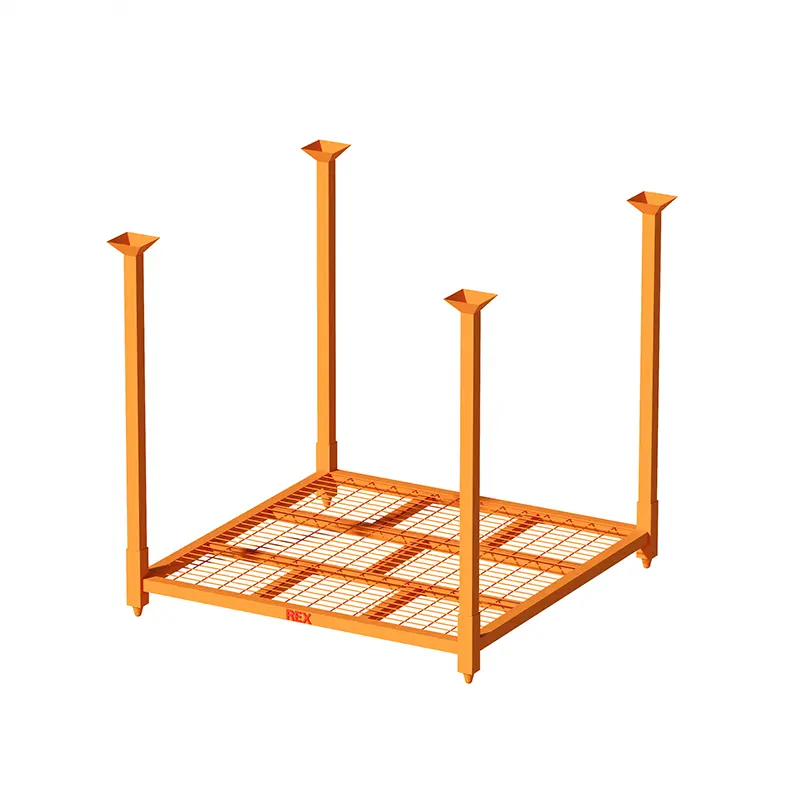

③ Finished Product: Assembly is complete once the uprights are inserted.

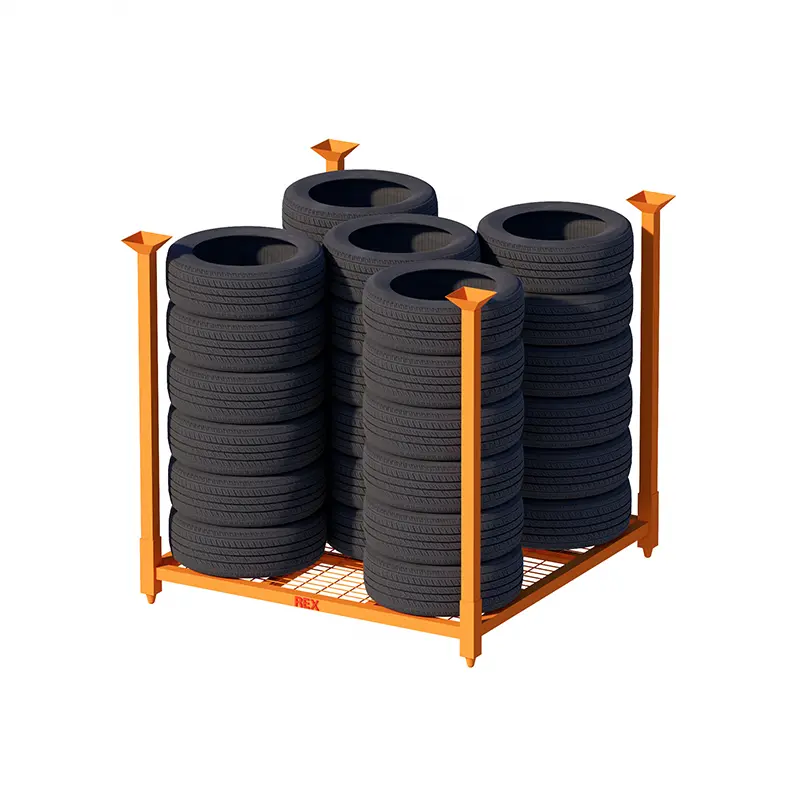

④ Storing Tires: Place tires horizontally on the rack in a barrel-stack configuration.

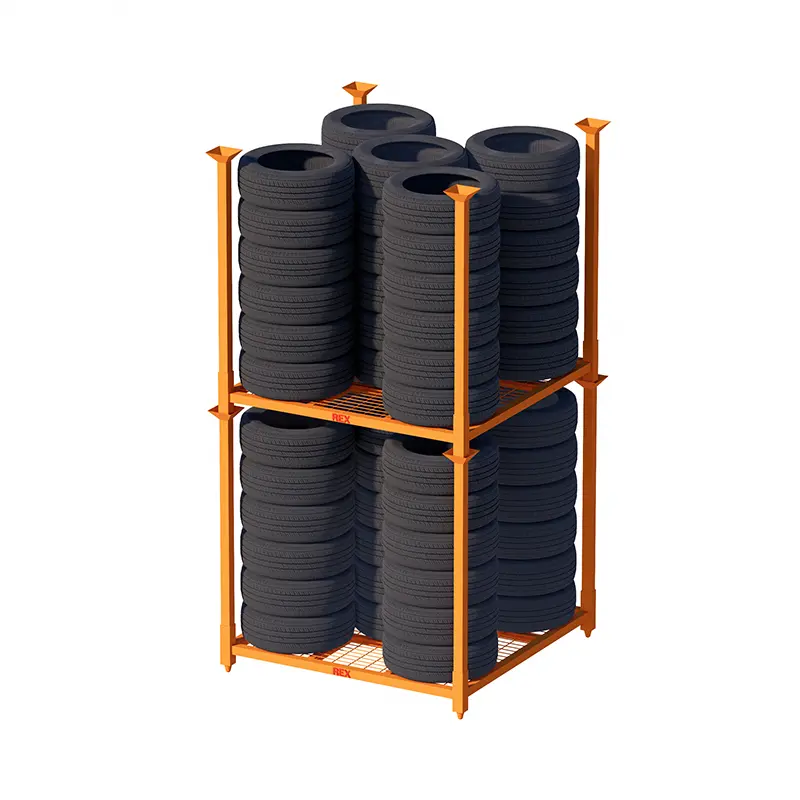

⑤ Stacking: Use a forklift to stack tire racks vertically, with tires loaded. Stacks can reach up to 1 to 5 layers.

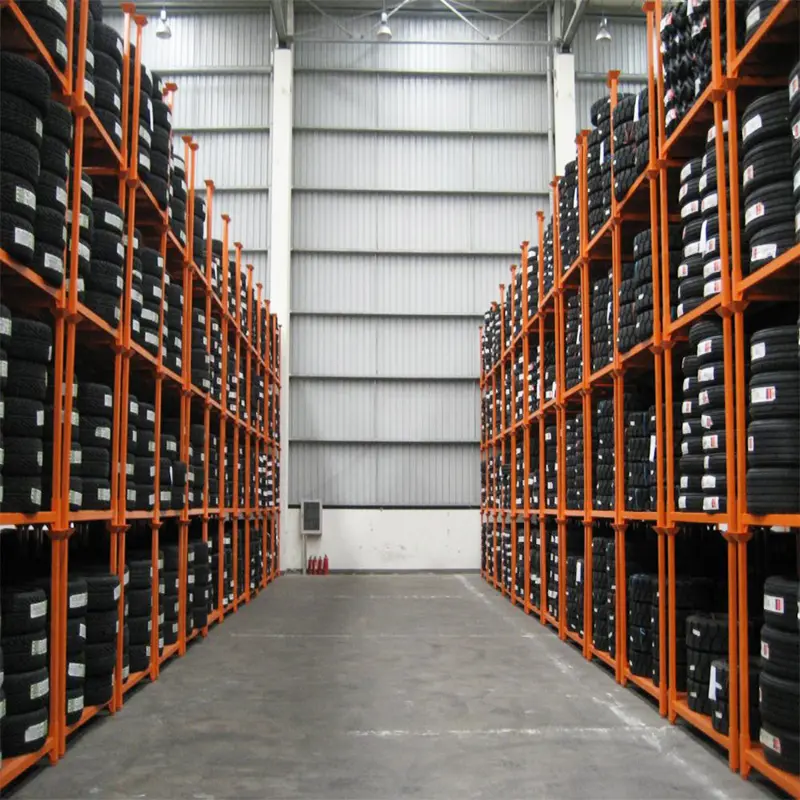

Using stacking racks can make full use of the upper space, improve the utilization rate of the upper space in the warehouse, and achieve high-density storage.
Overview
The 1524×1524×1524mm tubular tire rack, also known as the 60×60×60-inch portable tire rack, is a stackable, modular tire storage solution. It consists of a high-strength welded steel base (with mesh panel) and four removable uprights. Its core design principle is “assemble when needed, store when idle.”
Advantages
Ⅰ. Maximized Space Utilization
Vertical stacking allows for safe five-tier loading when fully loaded, converting warehouse “floor space” into “cubic volume.”

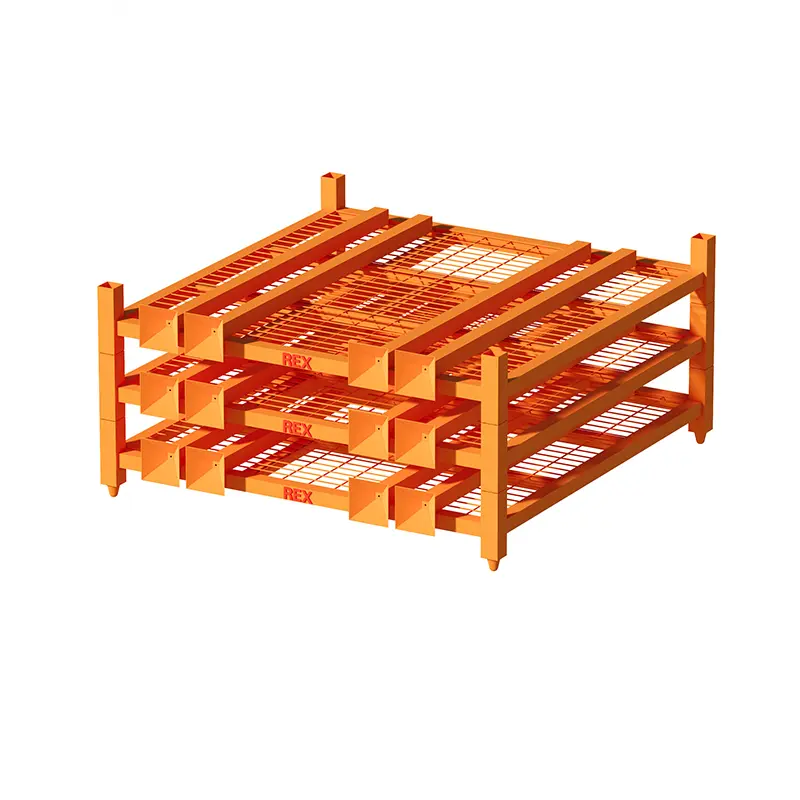

Disassembly for Storage: During off-peak seasons or return transport, simply remove the four uprights. The base stack like pallets, saving approximately 80% of storage space.
Ⅱ. Flexible Logistics Adaptability
Four-way forklift access: The base supports forklift entry from all four directions (front, rear, left, right), significantly boosting loading/unloading efficiency while reducing maneuvering challenges in narrow aisles.
Tire performance protection: Unlike traditional bulk stacking, the rack's support structure prevents deformation of bottom-tier tires caused by excessive pressure.
Applications
Ⅰ. Tire Manufacturing & Distribution Centers
Used for storing newly produced finished tires. The 60-inch width accommodates various sizes of passenger car tires (PCR) or light truck tires (LTR), facilitating rapid picking and SKU management.
Ⅱ. Automotive Repair Shops and 4S Dealerships
Used for centralized storage of customer tires during seasonal tire change peaks (e.g., winter-to-summer tire swaps). Its tidy appearance also enhances workshop professionalism.
