Do pallet stacking racks need to be fixed to the ground?

No, they don't need to be fixed; they can be used directly. Pallet stacking racks are a flexible storage system that, when used with a forklift, can be moved at any time. Once in the warehouse, they can be stacked 4-5 layers high for vertical storage.

Do you support custom sizes and column heights?

Yes. The base dimensions, pipe diameter, column height, and surface treatment can be customized according to the pallet size, weight, and warehouse conditions.

Are the cylindrical support posts prone to loosening or falling off?

Under normal use, they will not. The bottom of the support post uses a tapered design, which precisely connects with the positioning ring inside the base socket; the top of the support post is equipped with a stabilizing cap, which fits securely with the base foot, making it even more stable under load.

Home / Stacking Rack / 1200x1000mm Pallet Compatible Stacking Rack

1200x1000mm Pallet Compatible Stacking Rack - Gallery Image 1

1200x1000mm Pallet Compatible Stacking Rack - Gallery Image 2

1200x1000mm Pallet Compatible Stacking Rack - Gallery Image 3

1200x1000mm Pallet Compatible Stacking Rack - Gallery Image 4

1200x1000mm Pallet Compatible Stacking Rack

Model

Rex Metal - Pallet Stacking Rack

Size

1500×1110×1500 mm

Cargo Types

1200×1000mm pallet goods

Customized

Customization supported

Specifications & Usage Instructions

Type	Detachable	Materials	Q235 Steel
Features	Mobile、 Stackable	Load capacity	1500kg
Finish	Powder coated paint	Stackable – max. quantity (open)	5
Color	Orange+Blue	Stackable – max. quantity (closed)	20

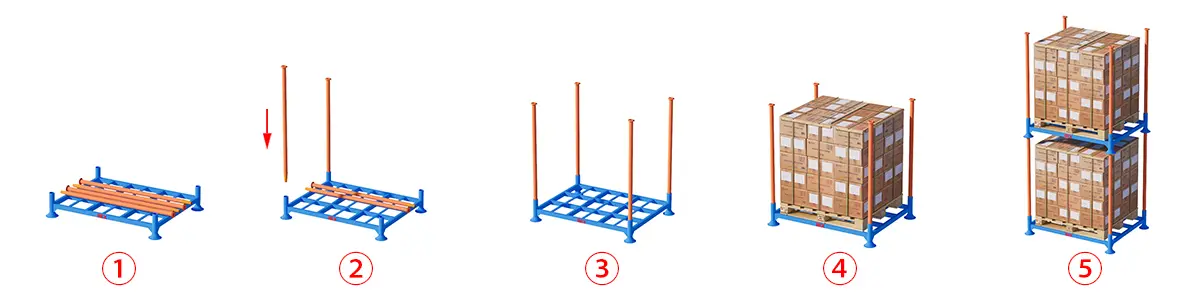

① Components: Gather all stacking rack components, including 1 base frame and 4 upright posts.

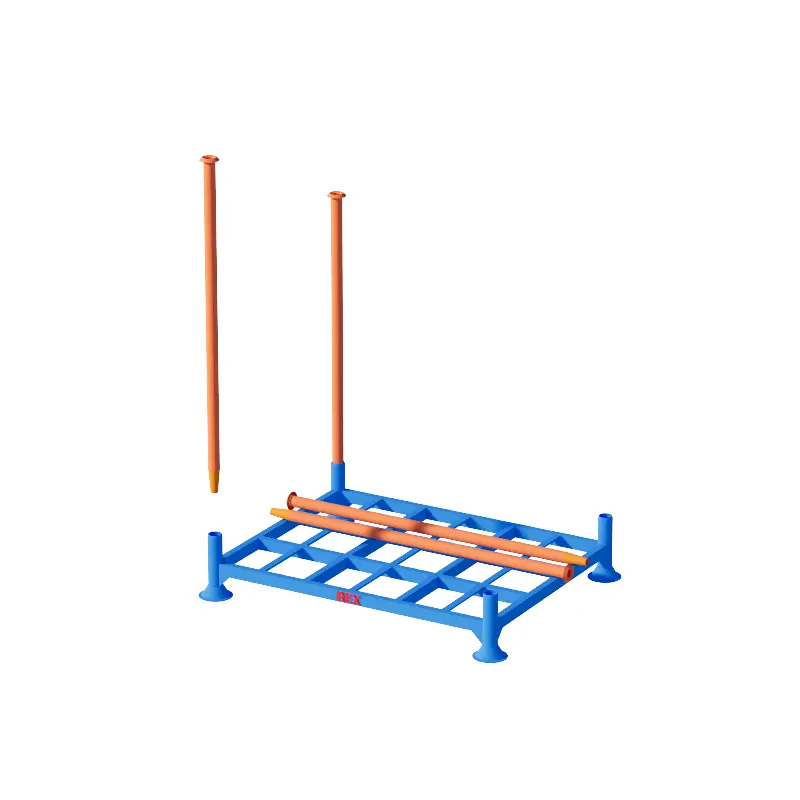

② Assembly: Insert each upright post vertically into the sleeves at the four corners of the base frame (ensure full insertion).

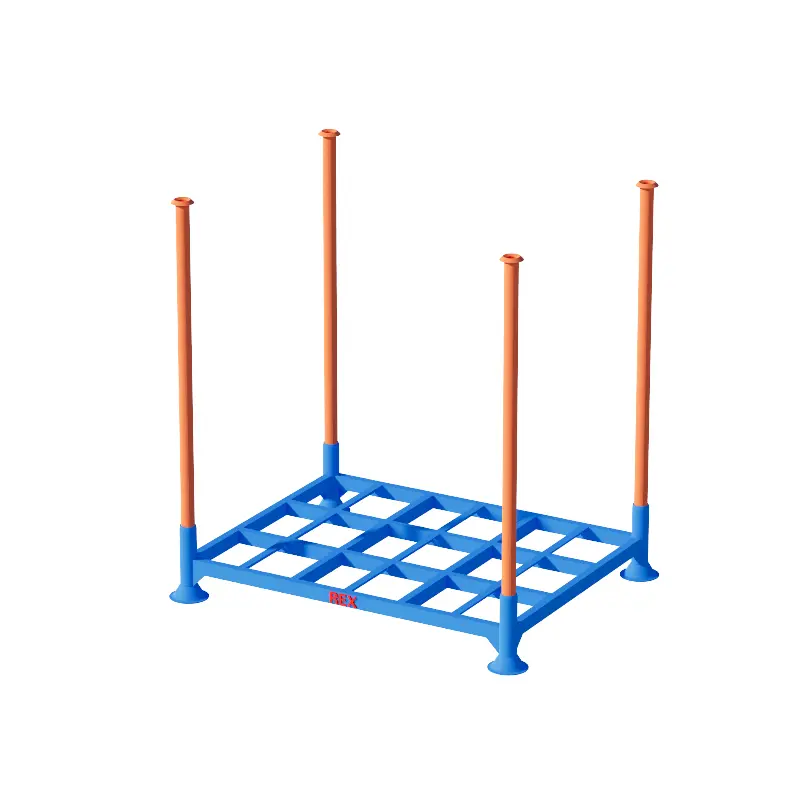

③ Finished Product: Assembly is complete once the uprights are inserted.

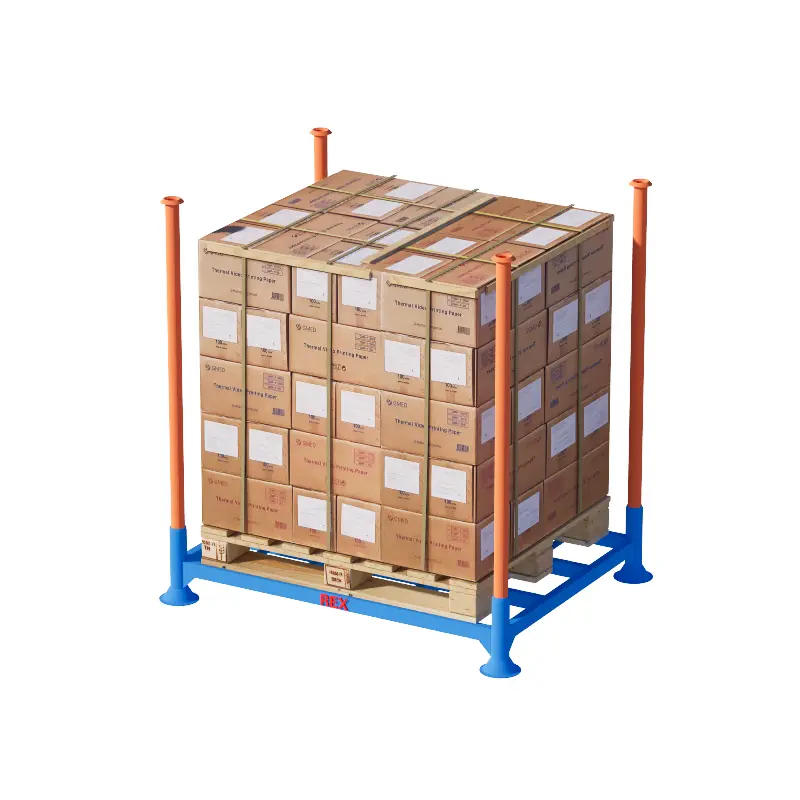

④ Storing Goods: Place palletized goods horizontally on the stacking rack, ensuring they are centered front-to-back and side-to-side.

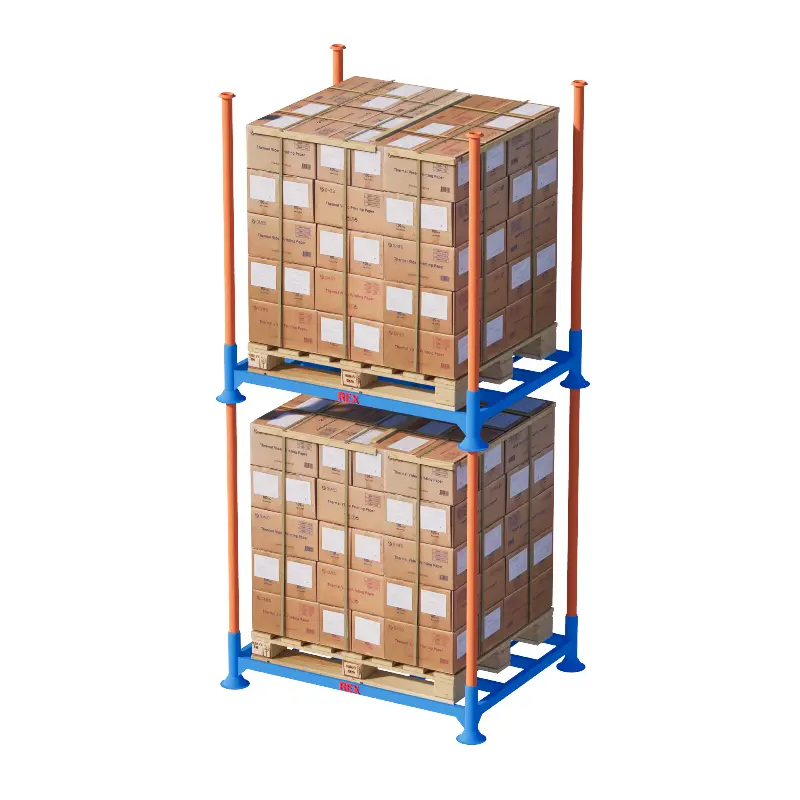

⑤ Stacking: Use a forklift to stack loaded stacking racks vertically, up to 1 to 5 layers high.

Using stacking racks can make full use of the upper space, improve the utilization rate of the upper space in the warehouse, and achieve high-density storage.

Overview

The 1500×1110×1500mm pallet stacking rack is a pallet stacking equipment that utilizes a round tube column plug-in structure. It mainly consists of a base frame and detachable round tube columns. The columns are fixed by inserting them into pre-reserved holes in the base, making installation and disassembly convenient, and ensuring a stable and reliable structure.

Made of high-quality steel, this stacking rack has excellent load-bearing capacity and is suitable for stacking and handling palletized goods of 1200×1000mm. When not in use, the columns can be completely disassembled, and the bases can be stacked for storage, effectively saving warehouse space. It is an efficient and flexible warehousing solution.

Advantages

Simple structure and easy installation: Featuring a plug-in round tube design, installation and disassembly can be completed without complex tools, significantly improving work efficiency.

Strong load-bearing capacity and high stability: The round tube columns have stabilizing caps at the top, combined with a sturdy base structure, ensuring even load distribution and suitability for stacking heavy goods, guaranteeing safe use.

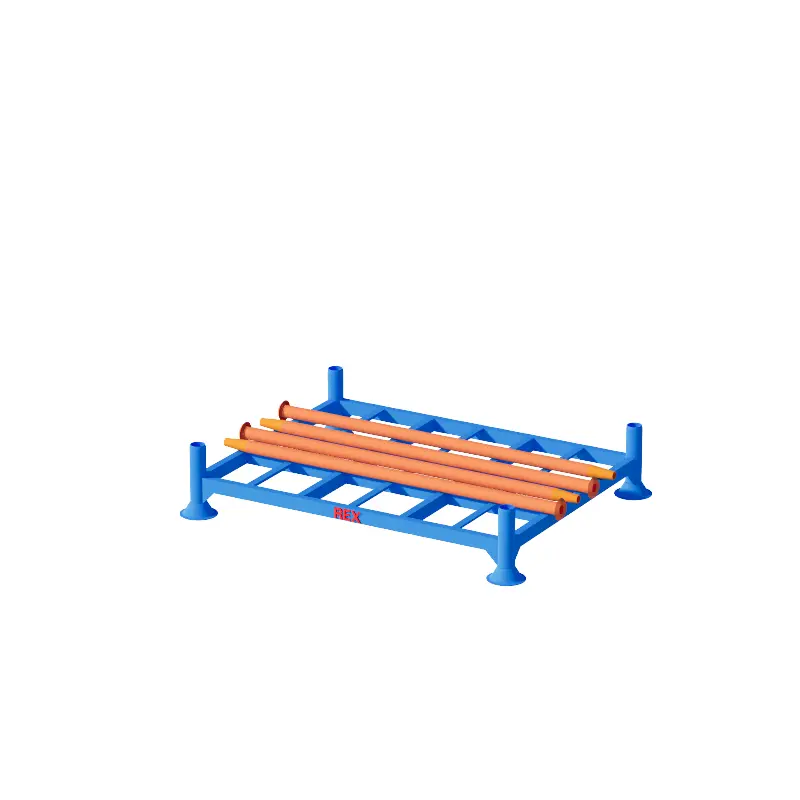

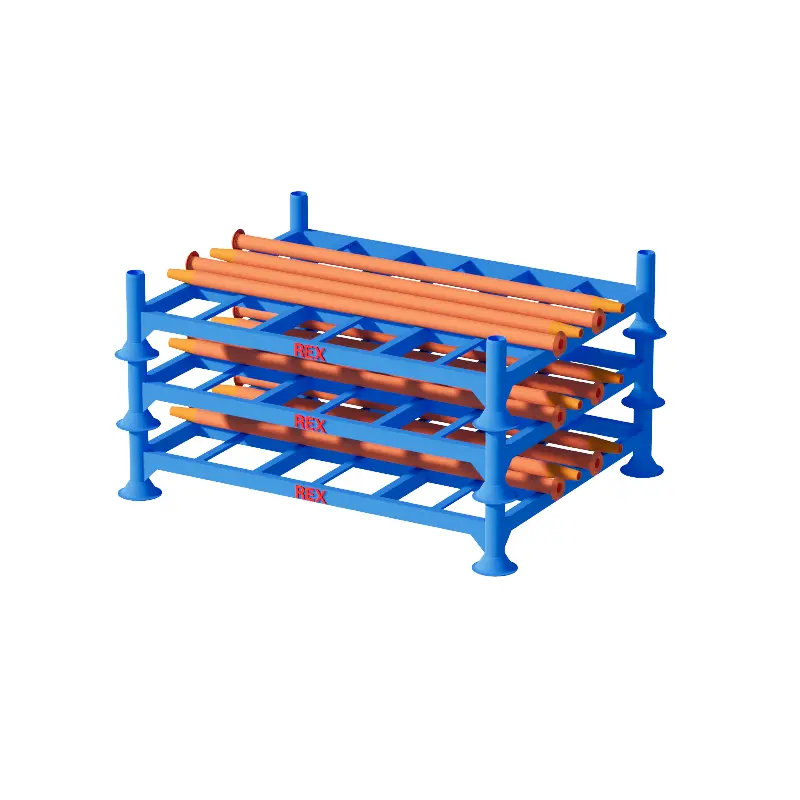

Detachable design for space saving: When empty, the columns can be detached, and the bases can be stacked together, significantly reducing the space occupied when not in use and lowering storage costs.

Strong adaptability and flexible combination: The stacking method can be flexibly configured according to warehouse conditions and stacking requirements, meeting the needs of different storage scenarios.

Applications

Pallet stacking racks are widely used in manufacturing plants, logistics and warehousing centers, and cold chain storage facilities. In production workshops, they can be used for the temporary storage of semi-finished and finished products; in warehouses, they enable the vertical stacking of palletized goods, improving space utilization; and in logistics transportation and handling, they facilitate quick loading and unloading and repeated use, helping to improve overall warehousing and logistics efficiency.
